MeshFree Reliability of Results



Relaibility of Results MeshFree (Slide 1)

NAFEMS Theoretical Value and Verification MeshFree (Slide 2)

Comparison with FEM Results MeshFree (Slide 3)

Comparison with FEM Results MeshFree (Slide 4)

Comparison with Practical Model MeshFree (Slide 5)

Comparison with Practical Model MeshFree (Slide 6)

Conduct your analysis for FREE!

Find out more about the revolution MeshFree brings to the future of FEA.



TRANSCRIPT



Reliability of Results

NAFEMS reference results for unit model, Comparison of FEM analysis results for practical model

  • NAFEMS Theoretical Value and Verification
  • Comparison With FEM Results
  • Comparison With Practical Model

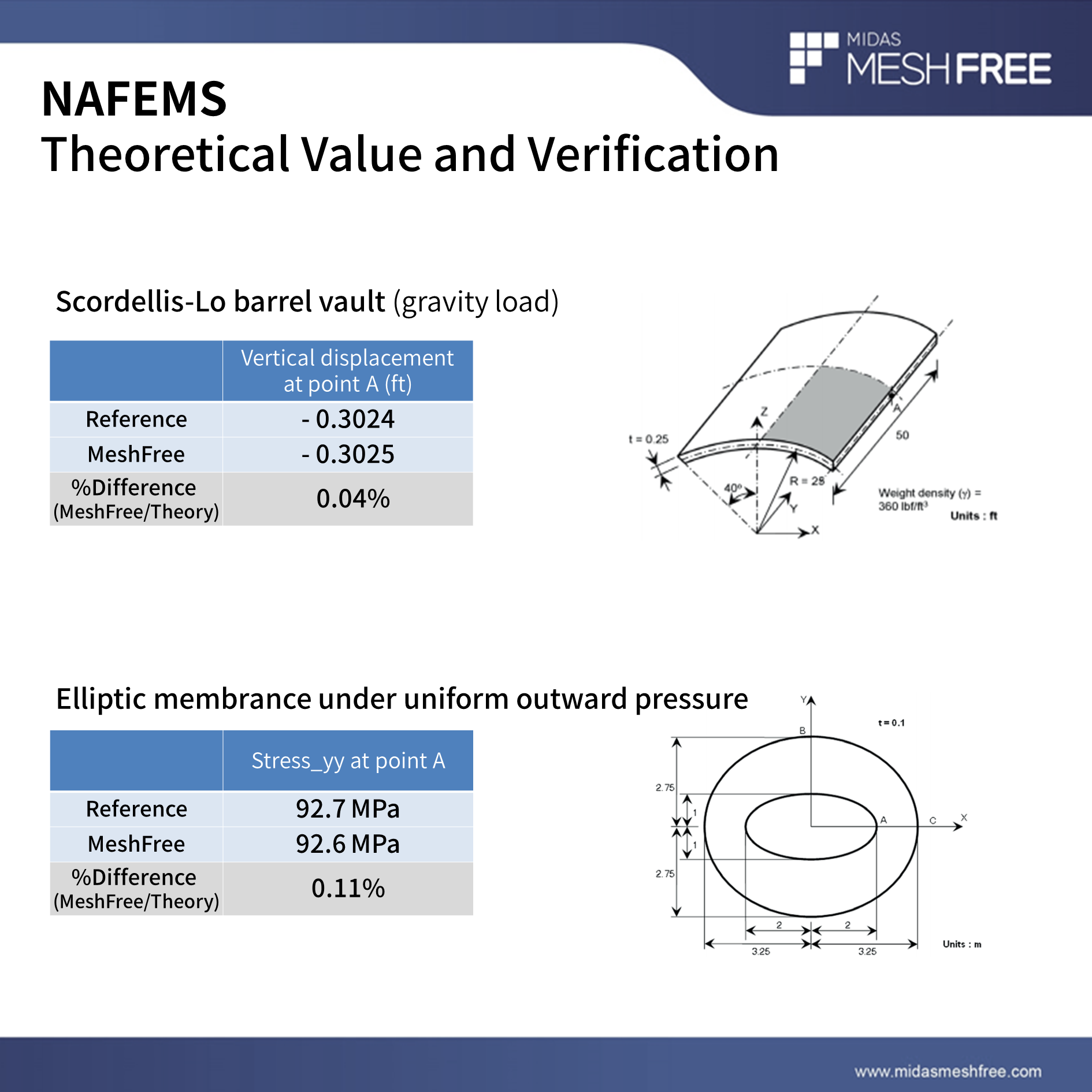

NAFEMS - Theoretical Value and Verification

Scordellis-Lo barrel vault (gravity load)

Vertical displacement at point A (ft)

Reference: -0.3024

MeshFree: -0.3025

% Difference (MeshFree/Theory): 0.04%



Elliptic membrane under uniform outward pressure

Stress_yy at point A

Reference: 92.7 MPa

MeshFree: 92.6 MPa

% Difference (MeshFree/Theory): 0.11%

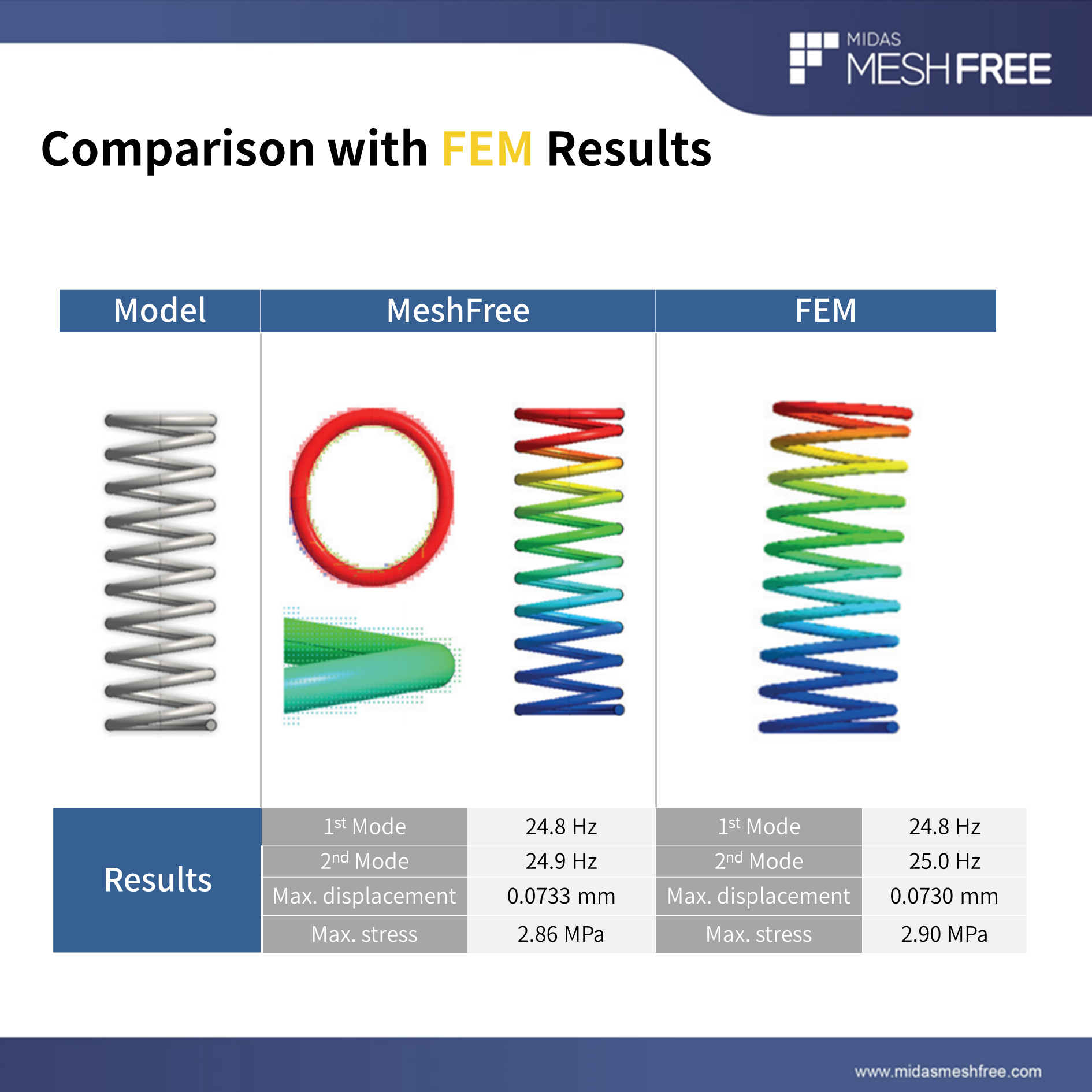

Comparison with FEM Results

MeshFree Results (Model 1)

1st Mode: 24.8 Hz

2nd Mode: 24.9 Hz

Max. displacement: 0.0733 mm

Max. stress: 2.86 MPa



FEM Results (Model 1)

1st Mode: 24.8 Hz

2nd Mode: 25.0 Hz

Max. displacement: 0.0730 mm

Max. stress: 2.90 MPa

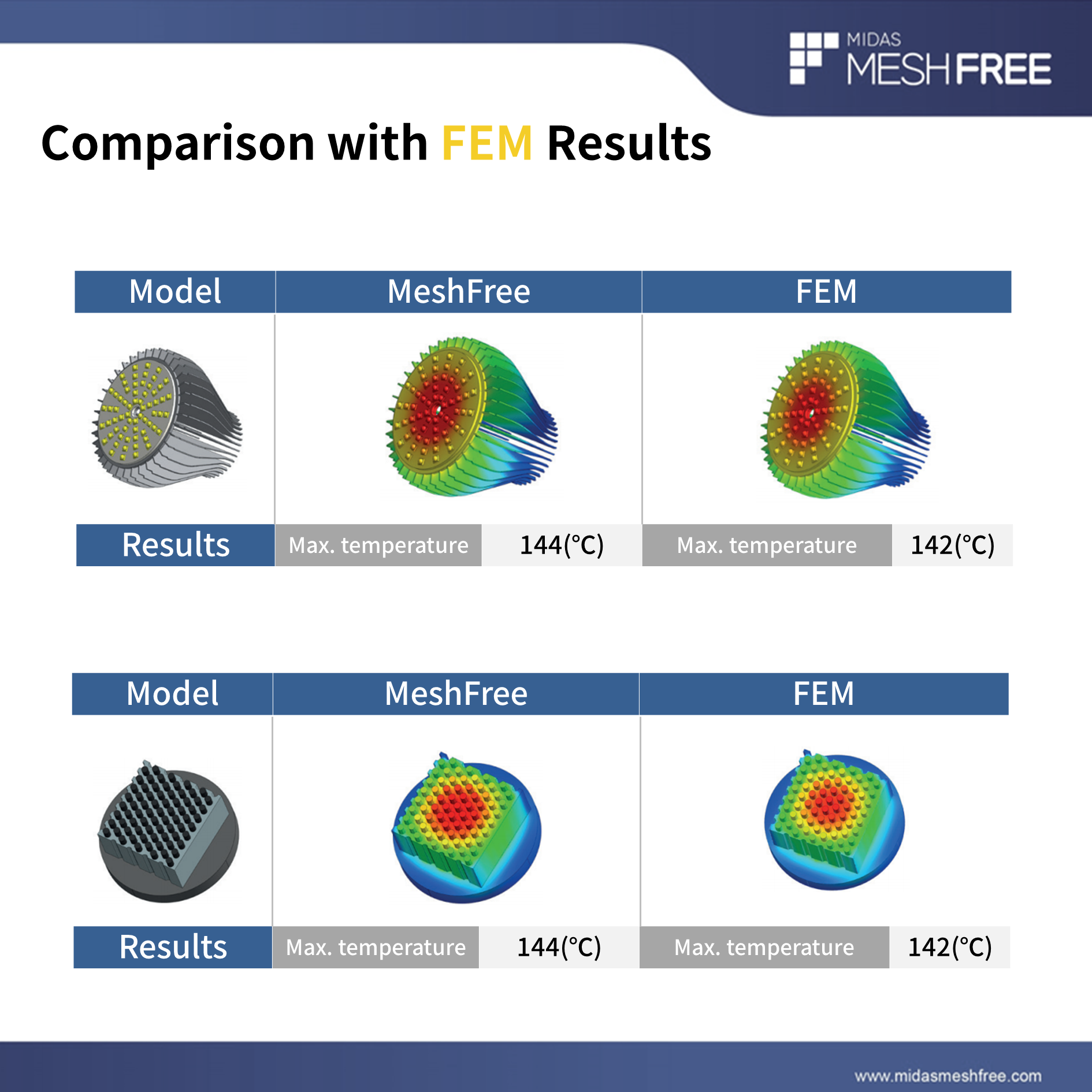

MeshFree Results (Model 2)

Max. temperature: 144 (ºC)



FEM Results (Model 2)

Max. temperature: 142 (ºC)



MeshFree Results (Model 3)

Max. temperature: 144 (ºC)



FEM Results (Model 2)

Max. temperature: 142 (ºC)

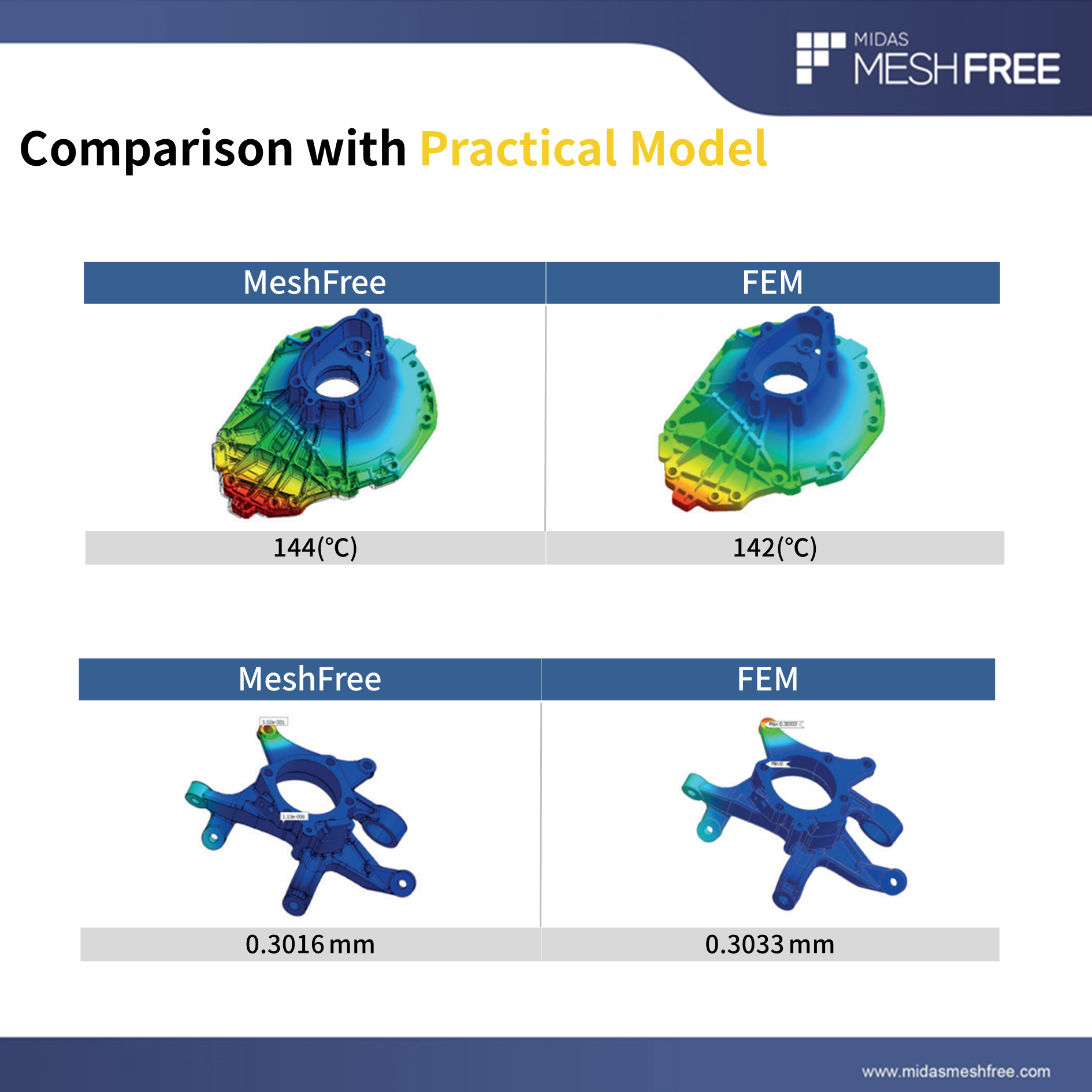

Comparison with Practical Model

MeshFree Results (Model 1)

144 (ºC)



FEM Results (Model 1)

142 (ºC)



MeshFree Results (Model 2)

0.3016 mm



FEM Results (Model 2)

0.3033 mm

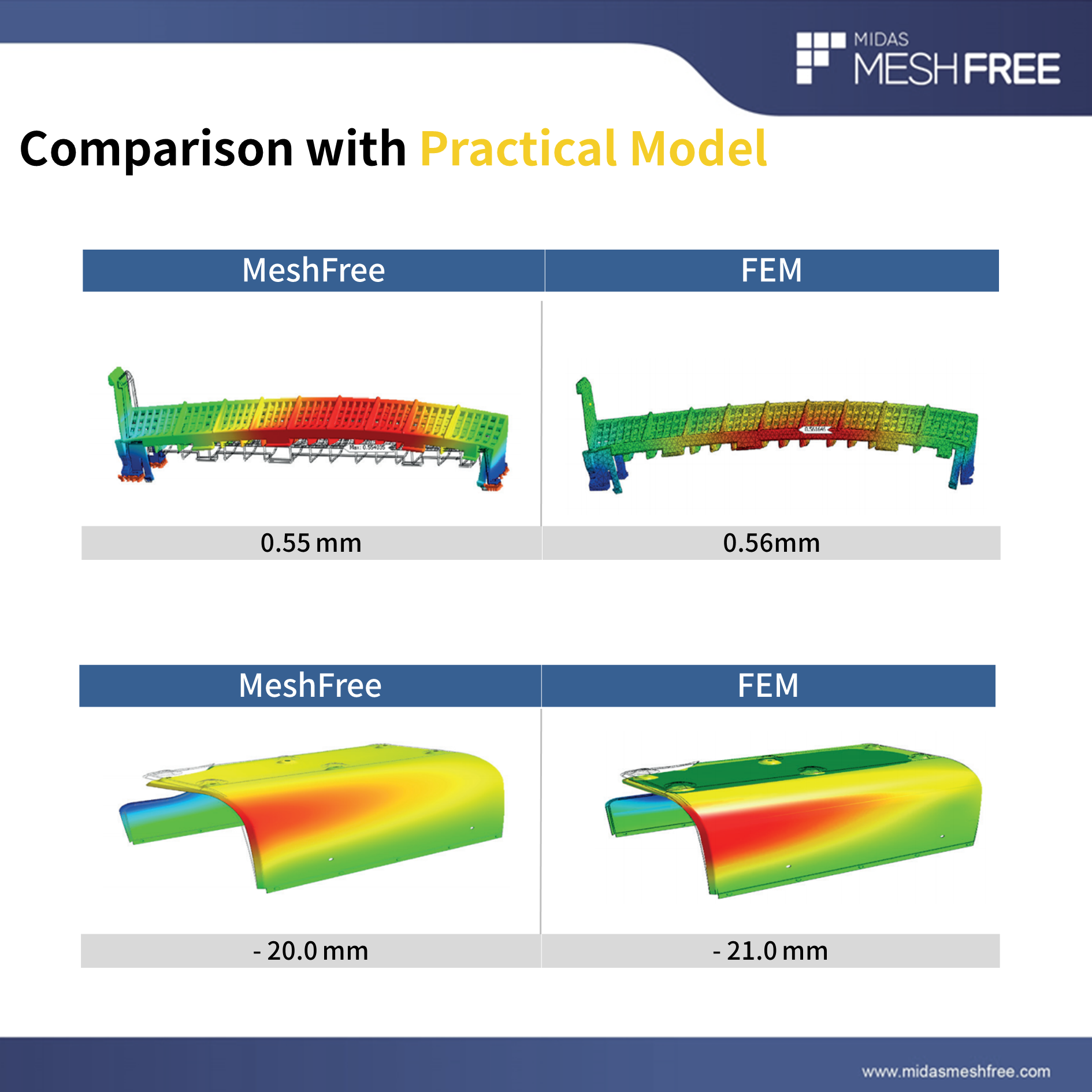

MeshFree Results (Model 3)

0.55 mm



FEM Results (Model 3)

0.56 mm



MeshFree Results (Model 4)

-20.0 mm



FEM Results (Model 4)

-21.0 mm




 speaker-icon1

Speaker :  Hannah Hwang

Category : Mechanical

Software : midas MeshFree

Date : 2018-08-15
