Linear Static Analysis

midas MeshFree



Linear Static Analysis

Analyze large and sophisticated models quickly and accurately.

• Displacement / Stress / Safety Factor Results
• Thermal Deformation / Stress due to Temperature Difference
• Possible to Consider Prestress
• Result Combination using Sub-cases by Load Conditions
• Linear Contact: Welded Behavior, Sliding
• Practical Load / Boundary Conditions

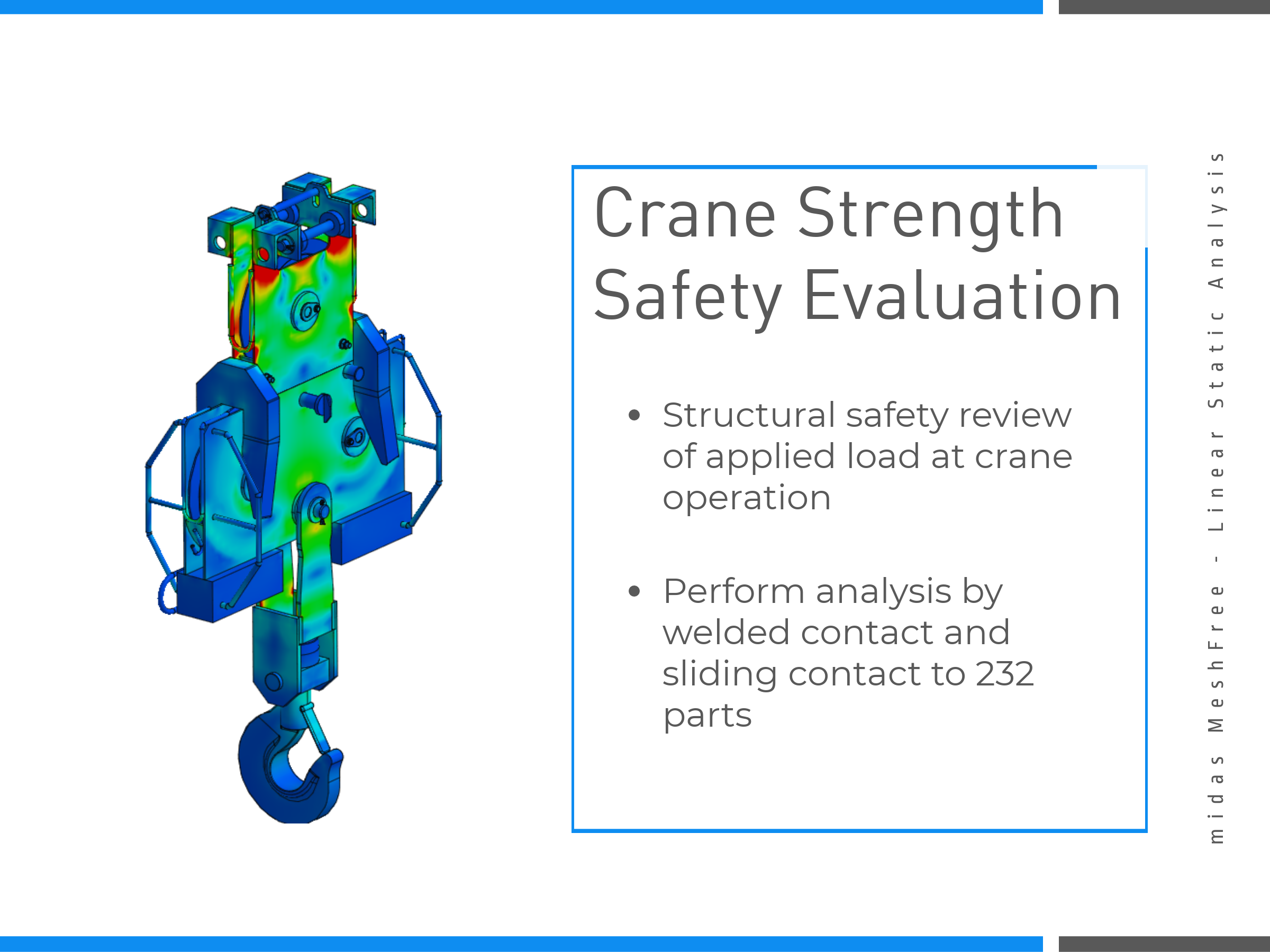

Crane Strength Safety Evaluation

• Structural safety review of applied load at crane operation
• Perform analysis by welded contact and sliding contact to 232 parts

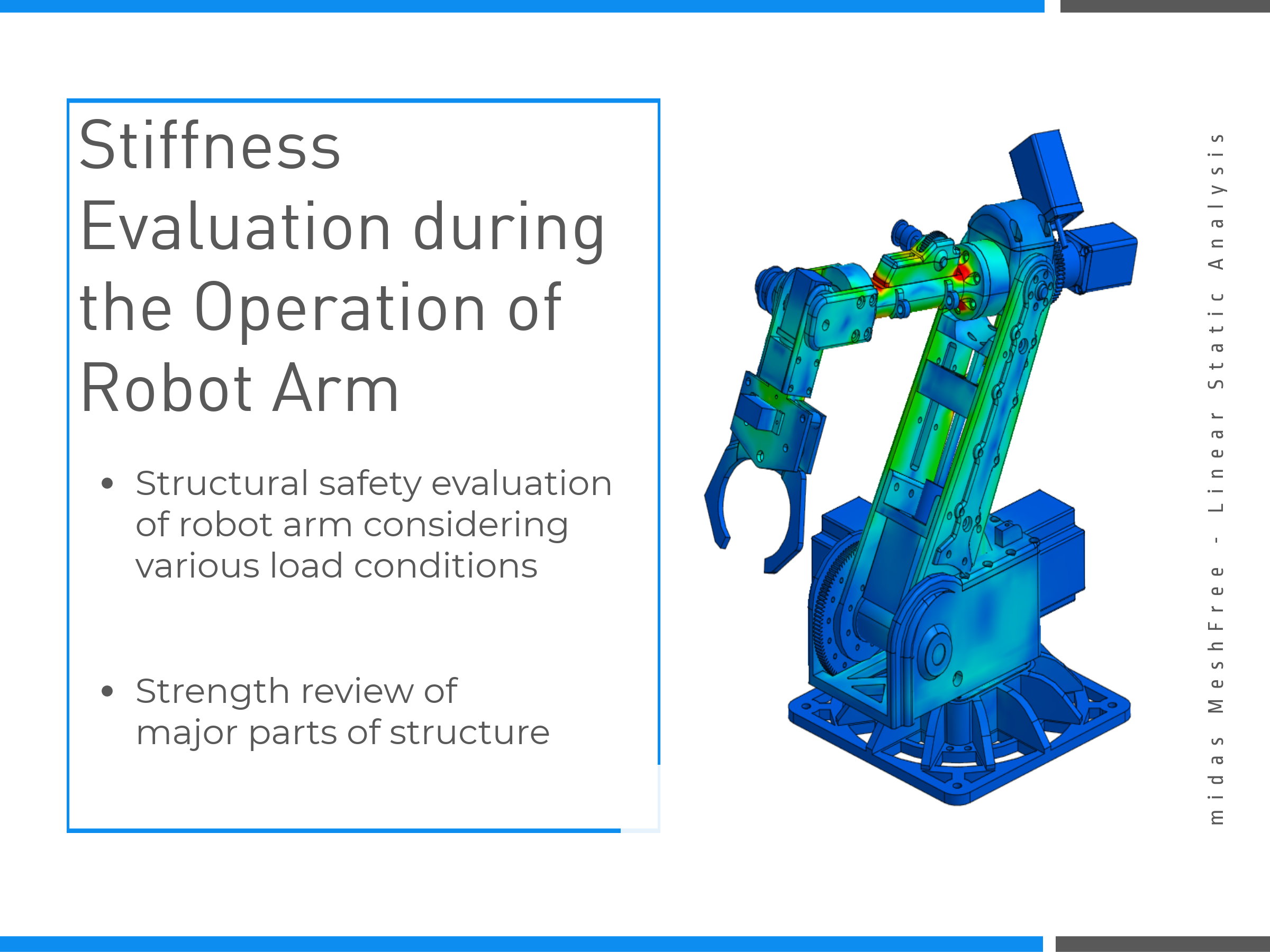

Stiffness Evaluation during the Operation of Robot Arm

• Structural safety evaluation of robot arm considering various load conditions.
• Strength review of major parts of structure

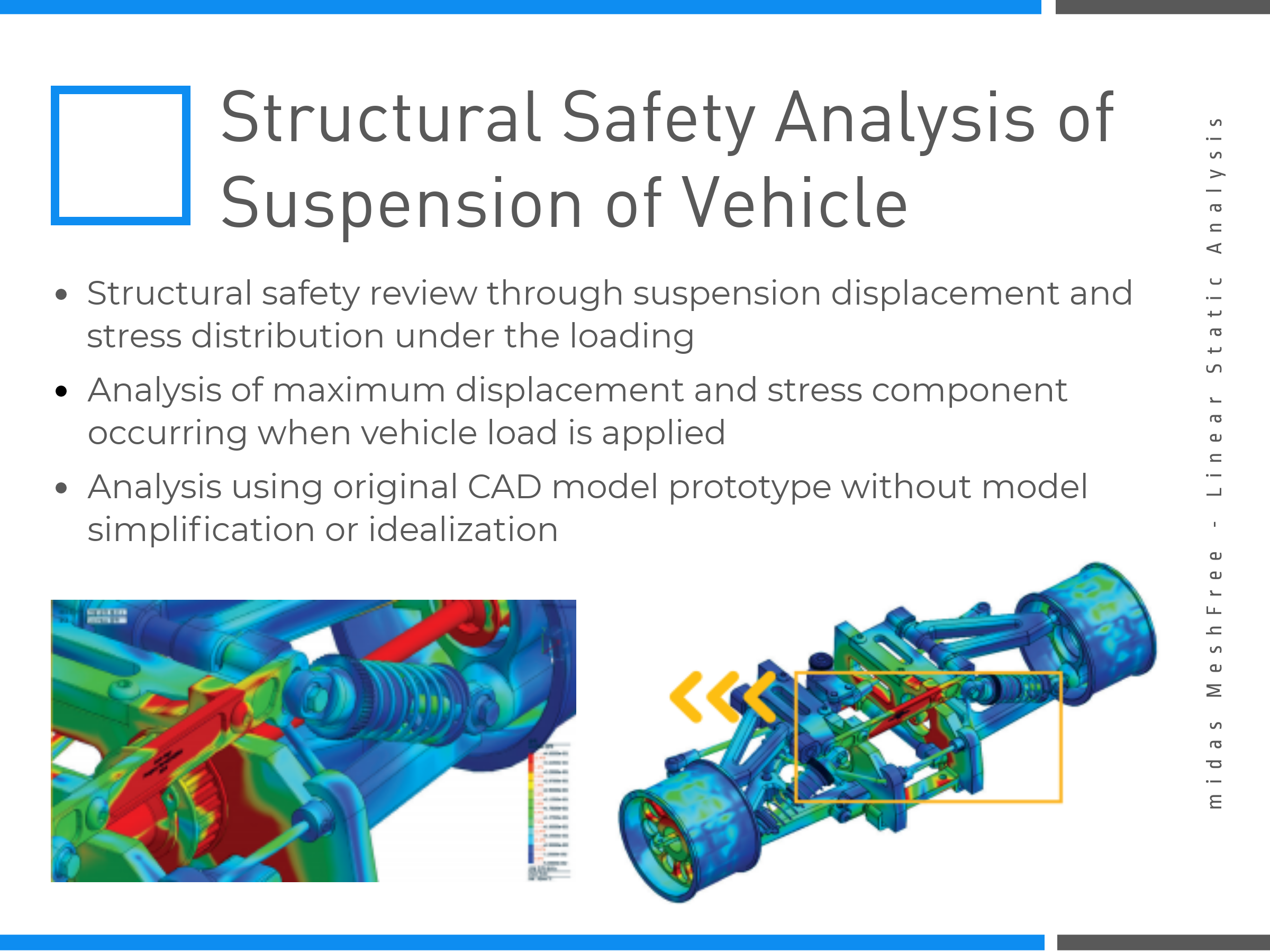

Structural Safety Analysis of Suspension of Vehicle

• Structural safety review through suspension displacement and stress distribution under the loading
• Analysis of maximum displacement and stress component occurring when vehicle load is applied
• Analysis using original CAD model prototype without model simplification or idealization

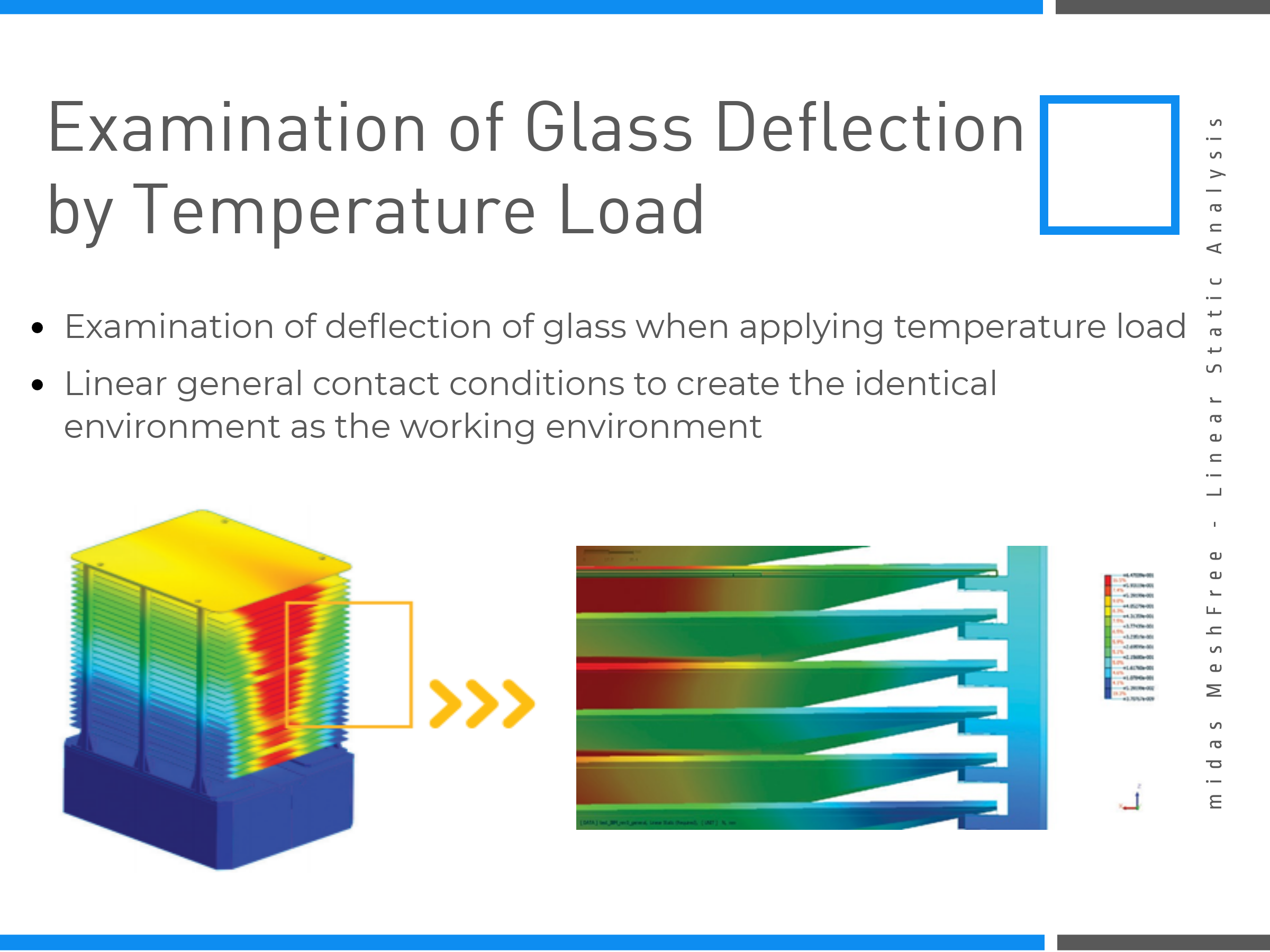

Examination of Glass Deflection by Temperature Load

• Examination of deflection of glass when applying temperature load
• Linear general contact conditions to create the identical environment as the working environment

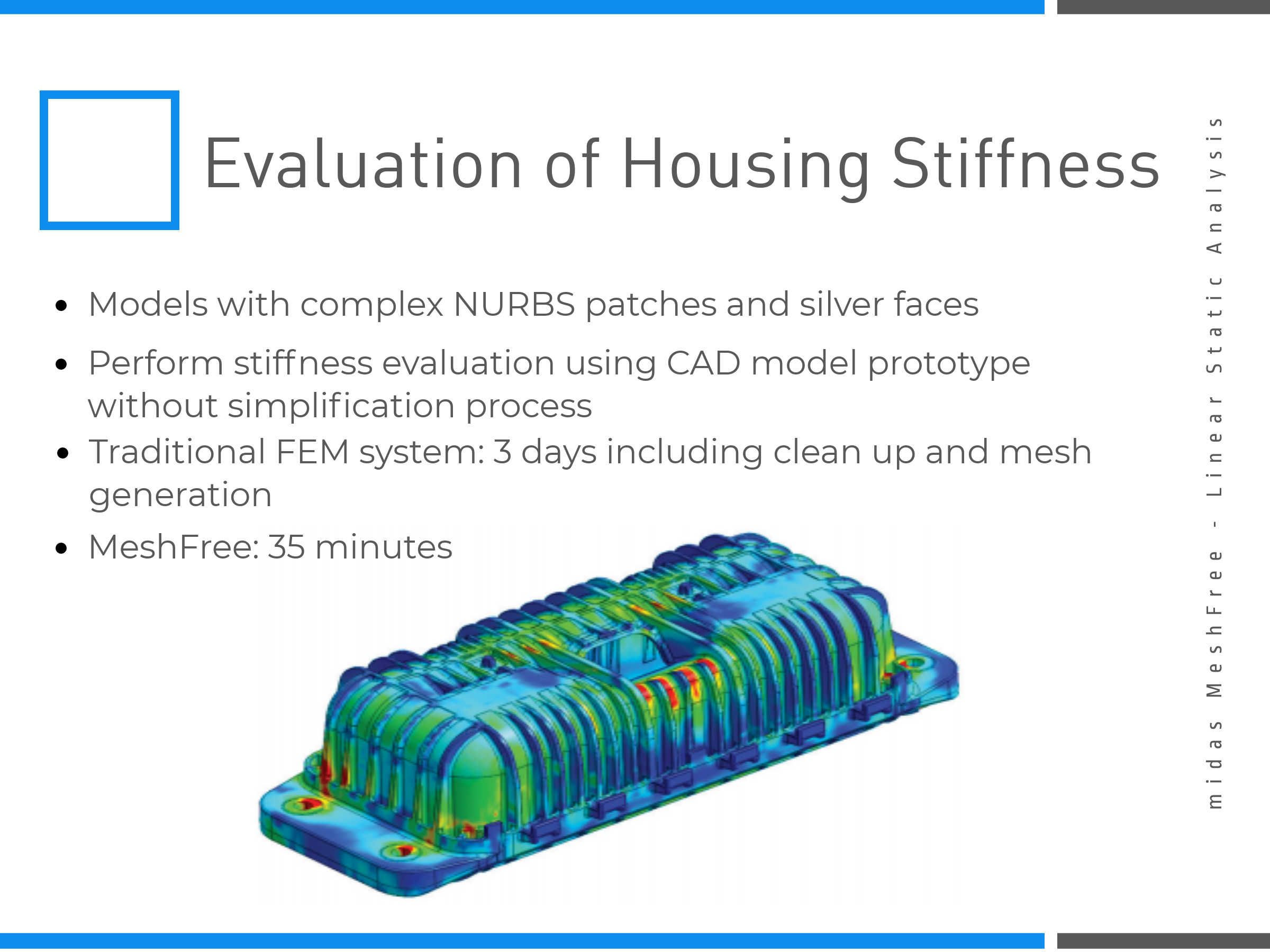

Evaluation of Housing Stiffness

• Models with complex NURBS patches and silver faces
• Perform stiffness evaluation using CAD model prototype without simplification process
• Traditional FEM system: 3 days including clean up and mesh generation
• MeshFree: 35 minutes
