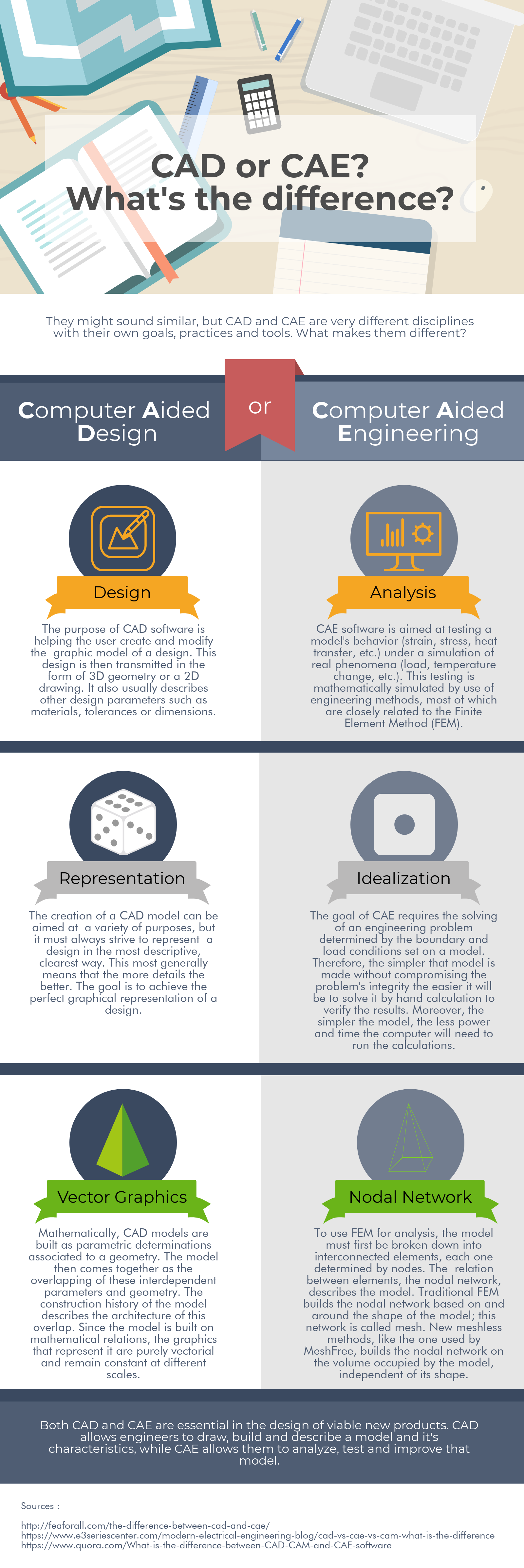

February 2nd Week - CAD or CAE

CAD or CAE? What's the difference?

They might sound similar, but CAD and CAE are very different disciplines with their own goals, practices and tools. What makes them different?

download-infograph-button



Conduct your analysis for FREE!





Computer Aided Design

Design

The purpose of CAD software is helping the user create and modify the graphic model of a design. This design is then transmitted in the form of 3D geometry or a 2D drawing. It also usually describes other design parameters such as materials, tolerances or dimensions.

Representation

The creation of a CAD model can be aimed at a variety of purposes, but it must always strive to represent a design in the most descriptive, clearest way. This most generally means that the more details the better. The goal is to achieve the perfect graphical representation of a design.

Vector Graphics

Mathematically, CAD models are built as parametric determinations associated to a geometry. The model then comes together as the overlapping of these independent parameters and geometry. The construction history of the model describes the architecture of this overlap. Since the model is built on mathematical relations, the graphics that represent it are purely vectorial and remain constant at different scales.



Computer Aided Engineering

Analysis

CAE software is aimed at testing a model's behavior (strain, stress, heat transfer, etc.) under a simulation of real phenomena (load, temperature difference, etc.). This testing is mathematically simulated by use of engineering methods, most of which are closely related to the Finite Element Method (FEM).

Idealization

The goal of CAE requires the solving of an engineering problem determined by the boundary and load conditions set on a model. Therefore, the simpler that model is made without compromising the problem's integrity the easier it will be to solve it by hand calculation to verify the results. Moreover, the simpler the model the less power and time the computer will need to run the calculations.

Nodal Network

To use FEM for analysis, the model must first be broken down into interconnected elements, each one determined by nodes. The relation between elements, the nodal network, describes the model. Traditional FEM builds the nodal network based on and around the shape of the model; this network is called mesh. New meshless methods, like the one used by MeshFree, build the nodal network on the volume occupied by the model, independent of shape.






Both CAD and CAE are essential in the design of viable new products. CAD allows engineers to draw, build and describe a model and its characteristics, while CAE allows them to analyze, test and improve that model.
