 For the previous example, we can use high-order triangular elements. This element has six nodes per element and assumes the displacement is quadratic within an element. Also, each side edge can be curved, as shown.  Geometry, Two high-order triangular element case Stress (ksi), Two high-order triangular element case

The FEA results in deflection = 0.285 in. and stress = 50.73 ksi. These are much better than those from linear triangular elements, but still way off. As shown, we can increase the number of divisions, say a total of 32 elements Geometry, 32 high-order triangular element case

As can be expected, the results are much better and close to so-called exact values.

 Deflection (in) Stress (ksi) Beam theory 0.341 80 2 triangular elements 0.0249 1.804 128 triangular elements 0.306 66.85 2 high-order triangular elements 0.285 50.73 32 high-order triangular elements 0.355 81.94

In the high-order triangular element, the displacement varies as quadratic (in other words, the shape function is quadratic) within an element. So the strain/stress varies linearly because strain/stress is one order lower than displacement, which is why this element is also called a linear (not constant) strain element.

The stress in this example varies linearly both in the horizontal and vertical axis. We know high-order triangular elements can consider this linear variation. Why we cannot get the exact results only with two elements?

With the given loading condition, the strain/stress varies linearly in the horizontal and vertical directions but not in the diagonal (connection line between two elements). However, in the high-order triangular element, linear variation is also assumed in this diagonal direction. If we consider the pure bending condition (M=10 ft-kips at the tip), we can get almost exact results only with two elements as shown. The minor differences are due to shear deformation. Stress (ksi), Two high-order triangular element case, Pure bending case

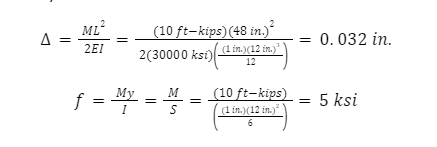

The exact values from beam theory are Pure bending case

 Deflection (in) Stress (ksi) Beam theory 0.032 5 2 high-order triangular element 0.0315 5.216 1 quadrilateral element 0.032 5

We can see that the accuracy from FEA depends on the number of divisions and the loading condition itself. For the same structure, sometimes we can get correct results only with two elements but wrong results even with 128 elements. This is one of the reasons why we need to understand the theory behind the FEA program.  Keep Updated With Technical Contents
