Author: Seungwoo Lee, Ph.D., P.E., S.E.

Publish Date: 14 Jul, 2023

Composite Section Analysis

Finally we came to the composite section analysis. One of the best examples is from Dr. Gilbert and Dr. Ranzi (Example 5.10, Time-dependent behavious of concrete structures, CRC Press, 2010.)

Next Steps

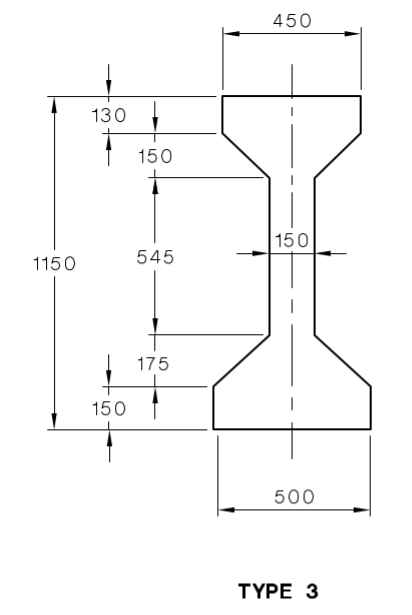

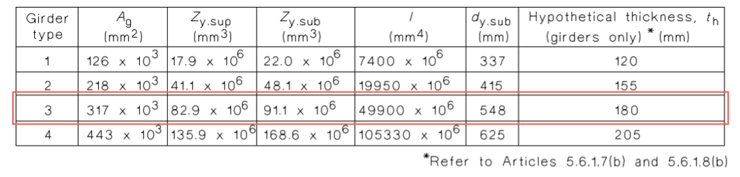

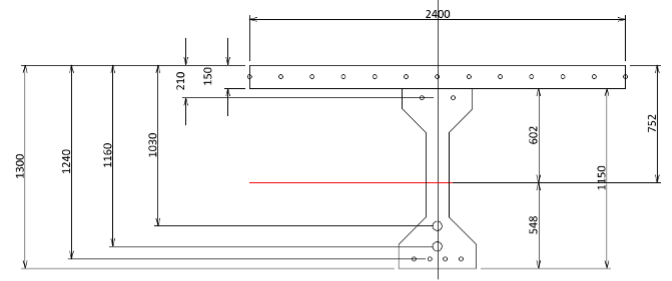

The proposed example is AS5100.5 Type 3 girder with 2400×150 CIP deck.



Composite Section Analysis AS5100.5 Type 3 girder

Composite Section Analysis table

Composite-Section-Analysis3

The Different Steps

Step 0)

At age 7, the girder is released with PT=1000 kN/tendon. DL moment at span center is M=550 kN-m. Ducts have not been grouted yet.



Ec(7)=25 GPa.

A duct = (1/4)π(60mm)2 = 0.00283 mm2

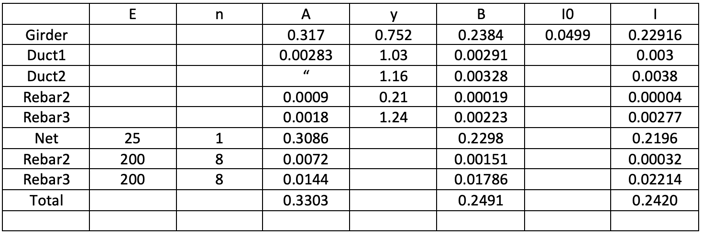

Composite Section Analysis Table 1

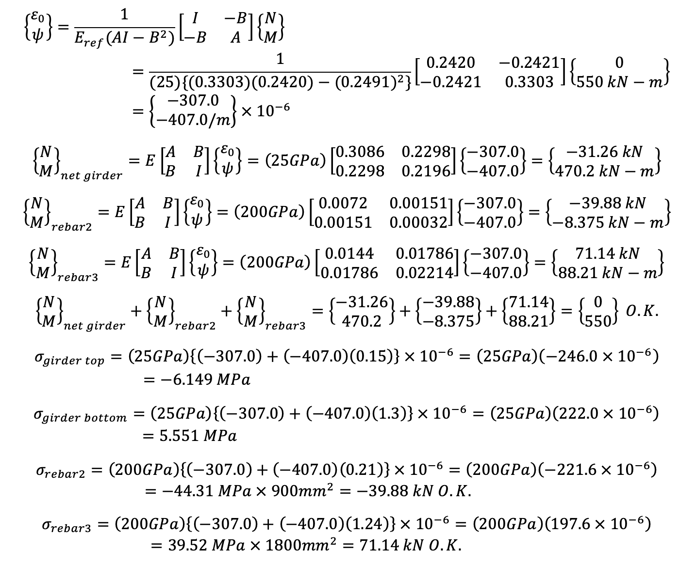

Due To DL  Moment

Composite Section Analysis Calculations

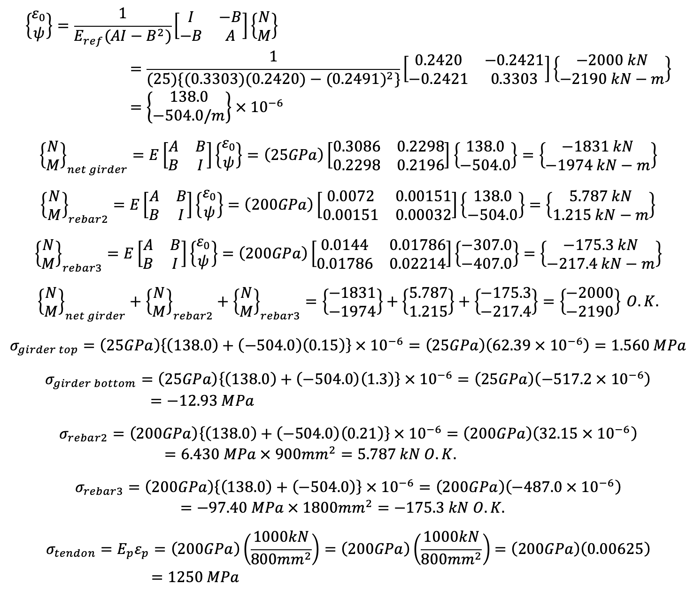

Due To Post Tensioning

N = -2000 kN

M = (-1000 kN)(1.03m+1.16m) = -2190 kN-m



Screen Shot 2023-07-14 at 9.58.16 AM

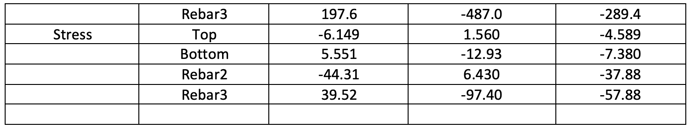

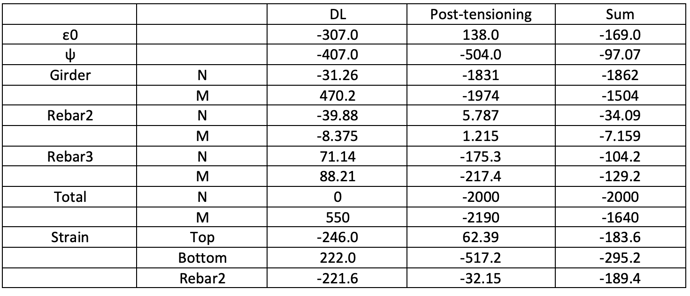

Summary

Screen Shot 2023-07-14 at 10.15.49 AM

Screen Shot 2023-07-14 at 10.16.32 AM

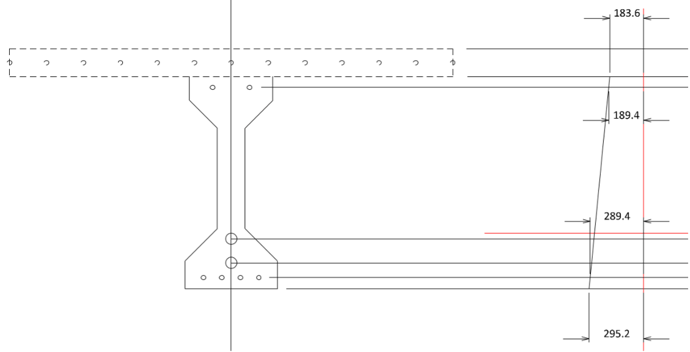

Composite Structure Analysis4

Part 9

Step 1)

Calculate strain and stress at age 40. The structural system is the same as step 0) and the differences are only the time effects.

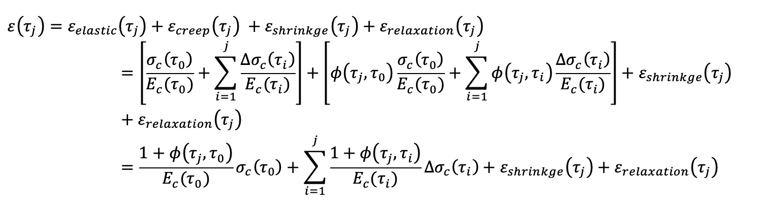

General equation for the time-dependent analysis is as follows.



General equation for the time-dependent analysis



For step 1), the equation can be simplified as below.



General equation for the time-dependent analysis simplified

Ec(40)=32 GPa

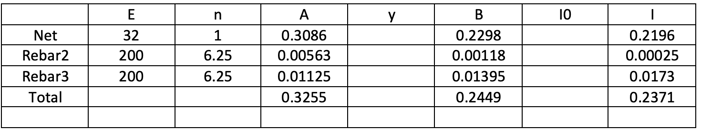

Section property

Creep analysis section property



Restraining force and strain

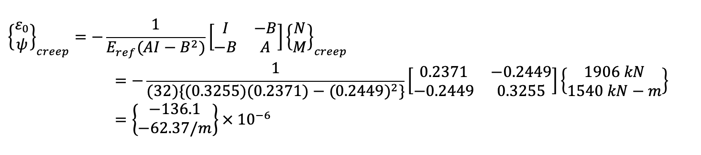

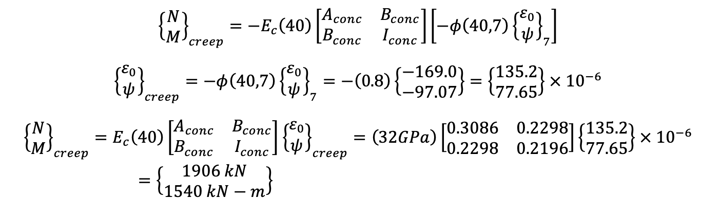

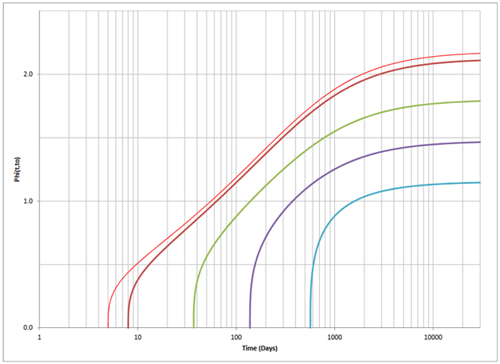

Due to creep

Φ(40,7)=0.8

creep analysis due to creep

creep analysis due to creep

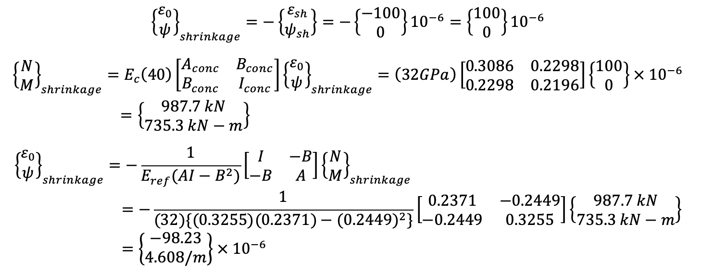

Due to shrinkage

εsh(40)=-100×10-6



creep analysis due to shrinkage

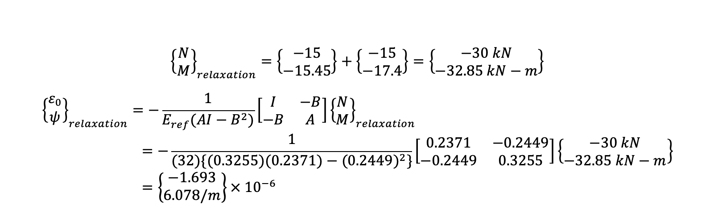

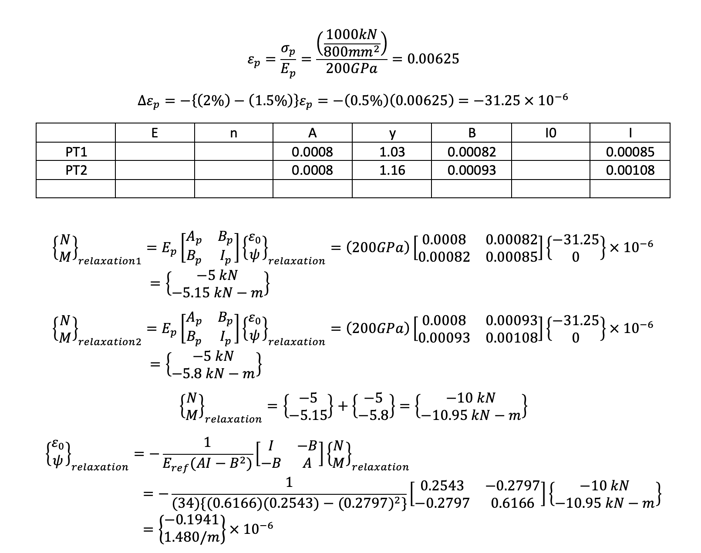

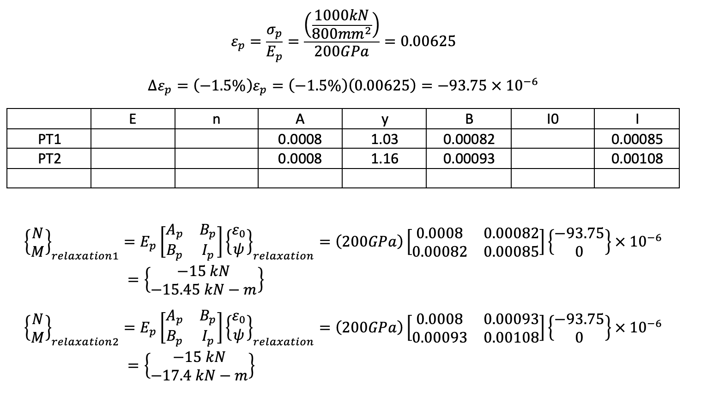

Due to relaxation

creep analysis due to relaxation

creep analysis due to relaxation 1

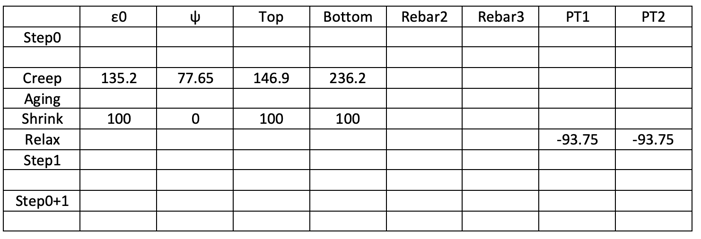

Unrestrained strain summary

creep analysis Unrestrained strain summary

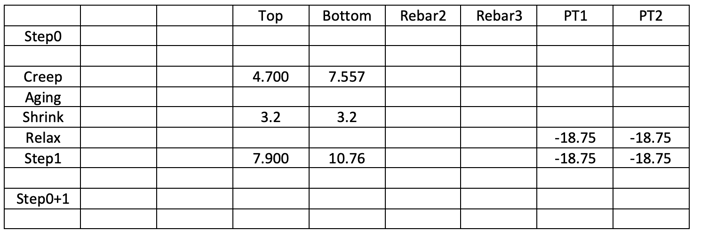

Stress caused by unrestrained strain summary (MPa)

creep analysis Stress caused by unrestrained strain summary (MPa)

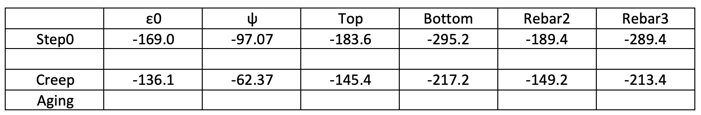

Restrained strain summary 0

creep analysis Restrained strain summary 0 1

creep analysis Restrained strain summary 0 1

Restrained strain diagram

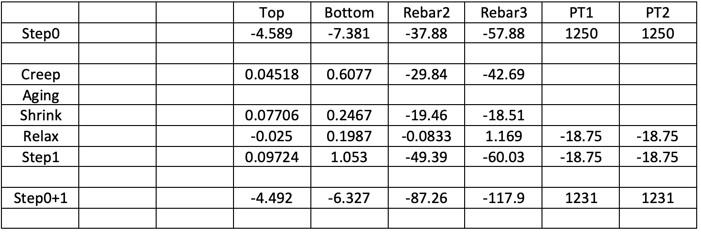

Stress caused by unstrained and restrained strain summary (MPa)

Stress caused by unstrained and restrained strain summary



Step 2)

At this step deck is poured and the moment is M40 = 620 kN-m. The structural system is the same as step 1).

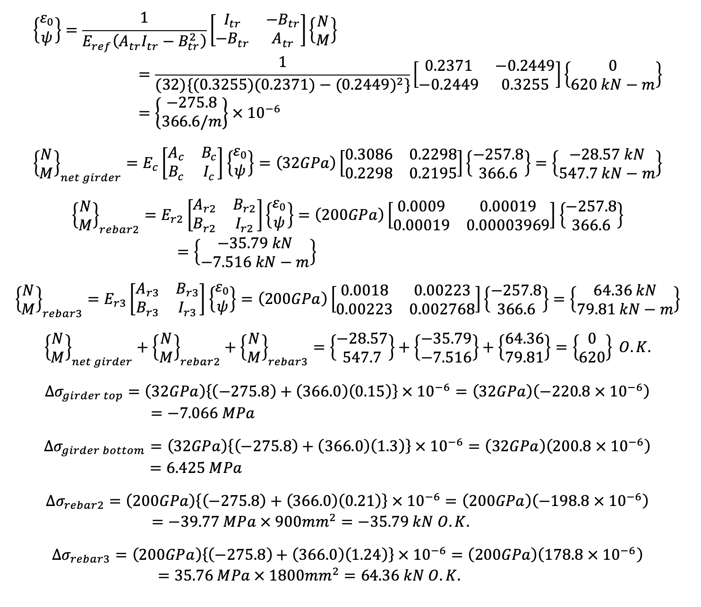

Due to deck moment

Due to deck moment

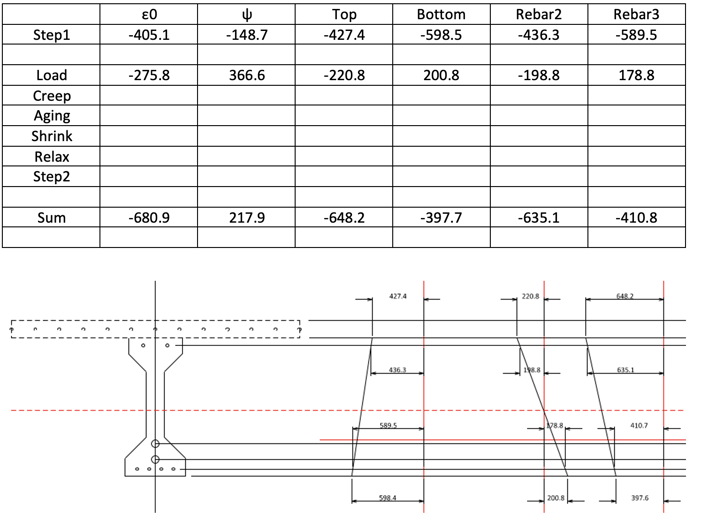

Step 2) - Restrained strain summary and diagram

Restrained strain summary and diagram

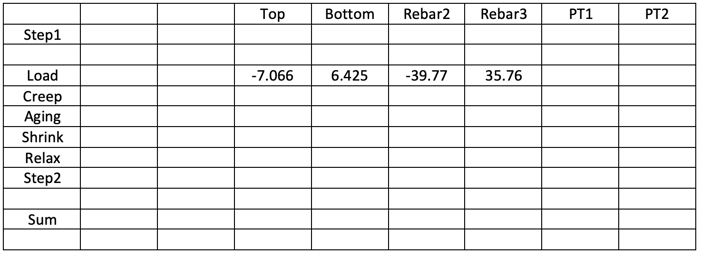

Step 2) - Stress caused by restrained strain summary (MPa)

Stress caused by restrained strain summary (MPa)

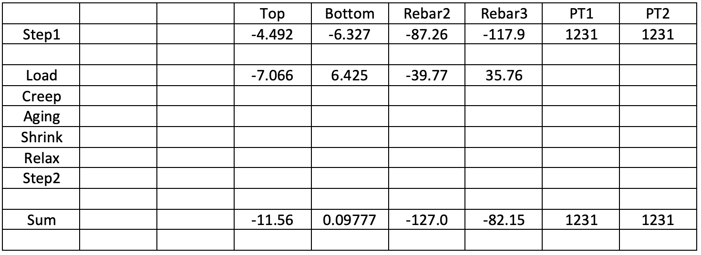

Step 2) - Stress caused by unstrained and restrained strain summary (MPa)

Stress caused by unstrained and restrained strain summary (MPa)



Step 3)

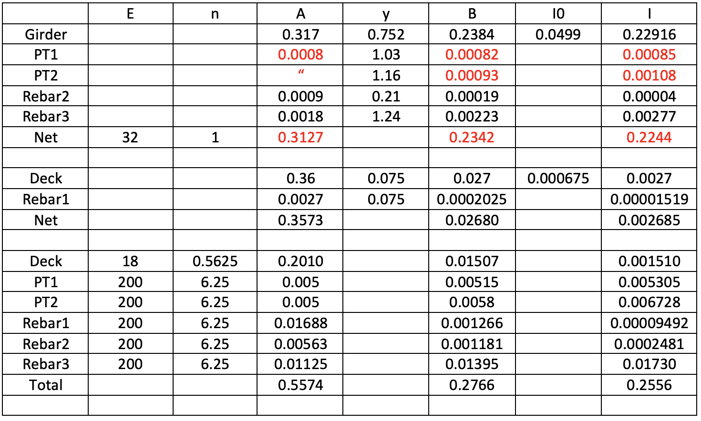

Duct grouting and deck composite commencement at day of 40.

Ec deck = 18 GPa

Duct grouting and deck composite commencement at day of 40



Step 4)

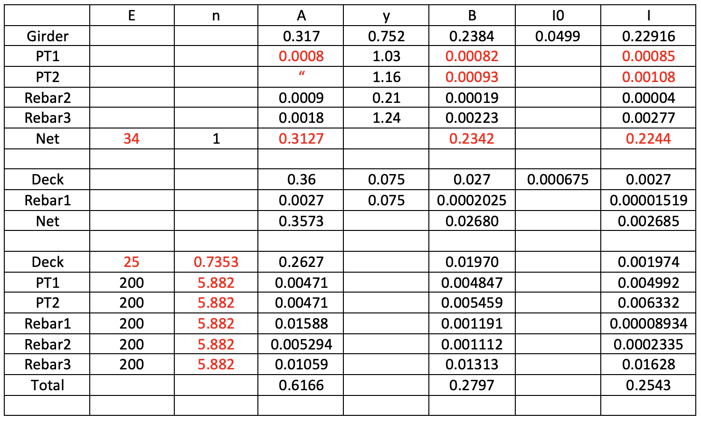

Calculate strain and stress at age of 60.

Calculate strain and stress at age of 60.

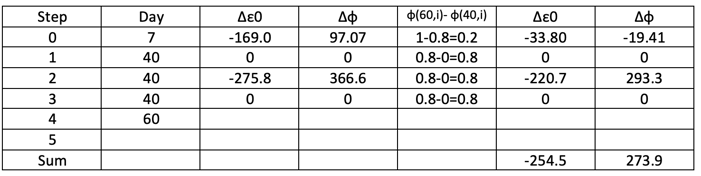

Strain summary

Strain summary

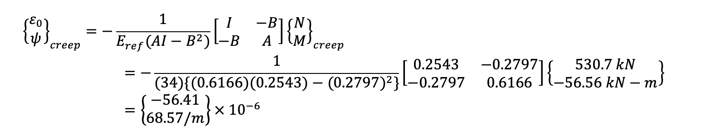

Due to creep

Due to creep

Due to creep 2

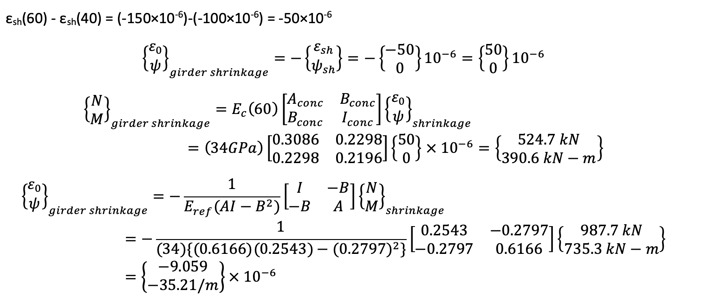

Due to shrinkage

Girder

due to shrinkage Girder

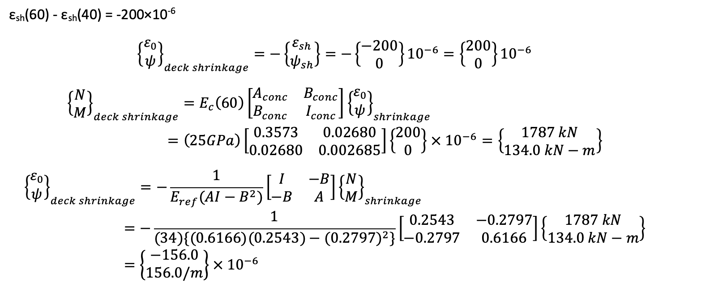

Deck

due to shrinkage deck

Due to relaxation

Due to relaxation

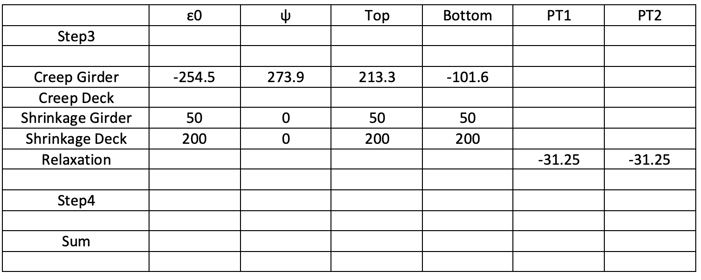

Step 4) - Unrestrained strain summary

Unrestrained strain summary

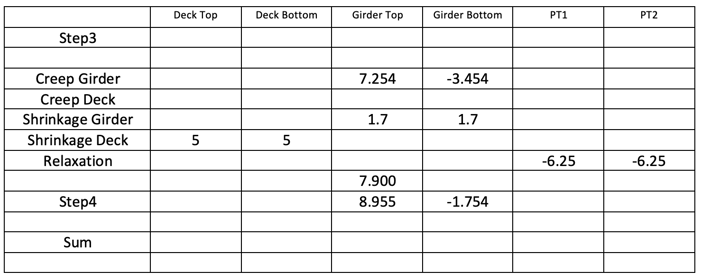

Step 4) - Stress caused by unrestrained strain summary (MPa)

Stress caused by unrestrained strain summary (MPa)

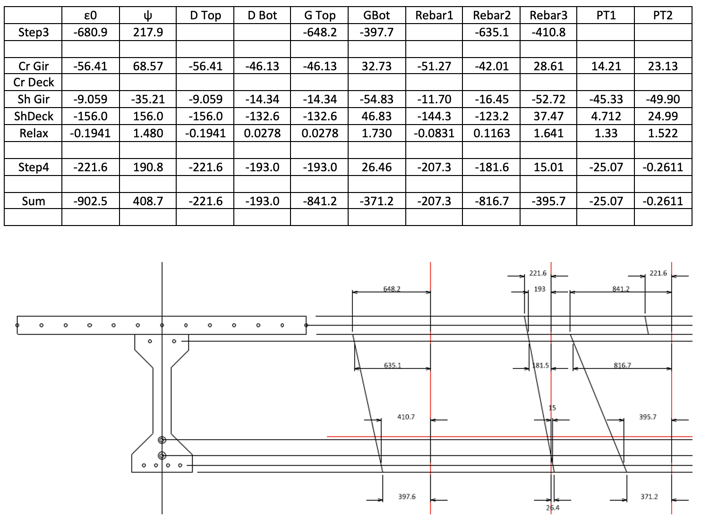

Step 4) - Restrained strain summary with diagram

Restrained strain summary and diagram1

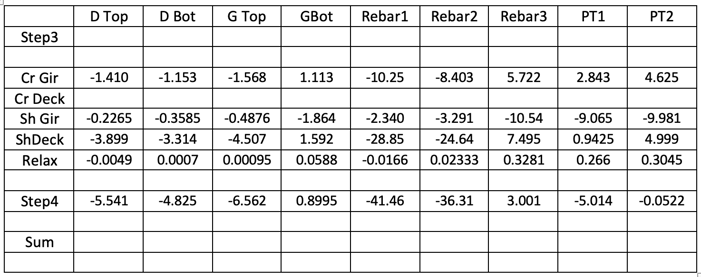

Step 4) - Stress caused by restrained strain summary (MPa)

Stress caused by restrained strain summary (MPa)1

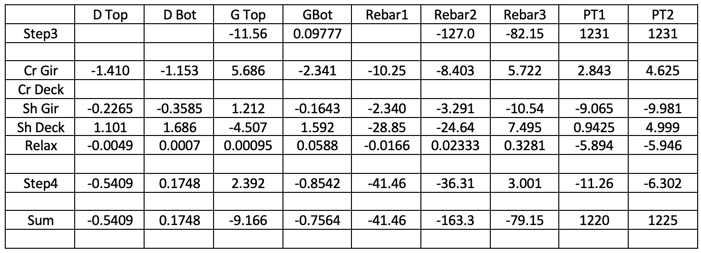

Step 4) - Stress caused by unstrained and restrained strain summary (MPa)

Stress caused by unstrained and restrained strain summary (MPa)1
