Midas GTS NX: Dam Seepage Analysis

Underground , Tunnel , Wall , midas GTS NX .

A super quick read.

Author: MIDASoft

Publish Date: 27 Dec, 2021













Detail of this Session

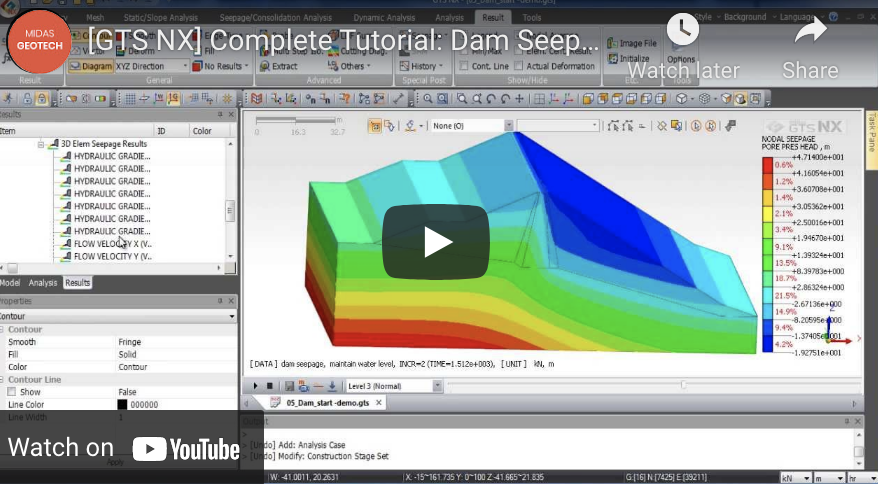

In this tutorial dam stability is verified under full water level and sudden draw-down conditions through 3D seepage analysis.
In this tutorial, the following main concepts will be explained:



• The characteristic of ground permeability/Unsaturated
• Setting seepage boundary conditions and options - Nodal head/Review
• Setting water level fluctuation function and time step
Dam stability according to time step (water level fluctuation)










 speaker-icon1

Speaker :  MIDASoft, Inc.

Category : Geotechnical

Software : midas GTS NX

Date : 2014-01-06
