Introduction to Cable Stayed Bridge Modeling and Analysis

Training , Cable-stayed .

1 min read

Author: MIDASoft

Publish Date: 12 Nov, 2018





Video Clip
Spine Beam Modeling 5:17 - 5:43
Cable Modeling 5:43 - 6:58
Multi-Scale Modeling 6:58 - 7:48
Modeling Demonstration 9:48 - 13:03
Analysis Philosophy 13:03 - 18:28
Cable Force Tuning 18:28 - 26:51
Lack of Fit Force 30:31 - 34:49
Nonlinear Effect 34:49 - 41:04
Project Applications 41:04 - 45:30


Purpose of the Training
and construction analysis to cable tuning force. We will cover using the wizard to model the bridge with ease and then go over how to set up construction stages. The unknown factor function which is used to get a rough cable tuning force will also be explained. Finally, in more depth, the cable tuning force, which can be fixed by the constraints such as moment and displacement so on through a tool, will be demonstrated which is for a real-time application.

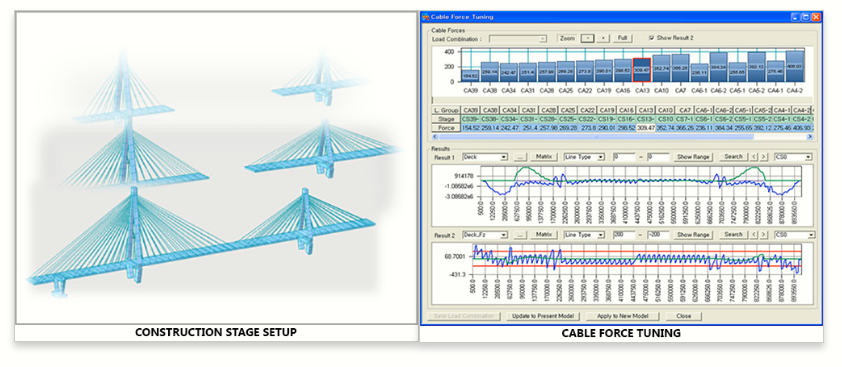

Key Feature
- Modeling a cable-stayed bridge through wizard
- Construction stage set up
- Unknown factor function
- Cable force tuning

You will be able to take advantage of features that are not available in any software.
- All-in-one process from modeling to cable force tuning skills
- Unlike other conventional software, in midasCivil, you can accurately tune the each cable pretension load
with consideration for moment and displacement.






Speaker :  MIDASoft, Inc.

Category : Bridge

Software : midas Civil

Date : 2015-10-14
