Midas NFX: Boiler Cover Plate Case Study

 000-5

Analysis Purpose : Improvement for Deformation of Cover

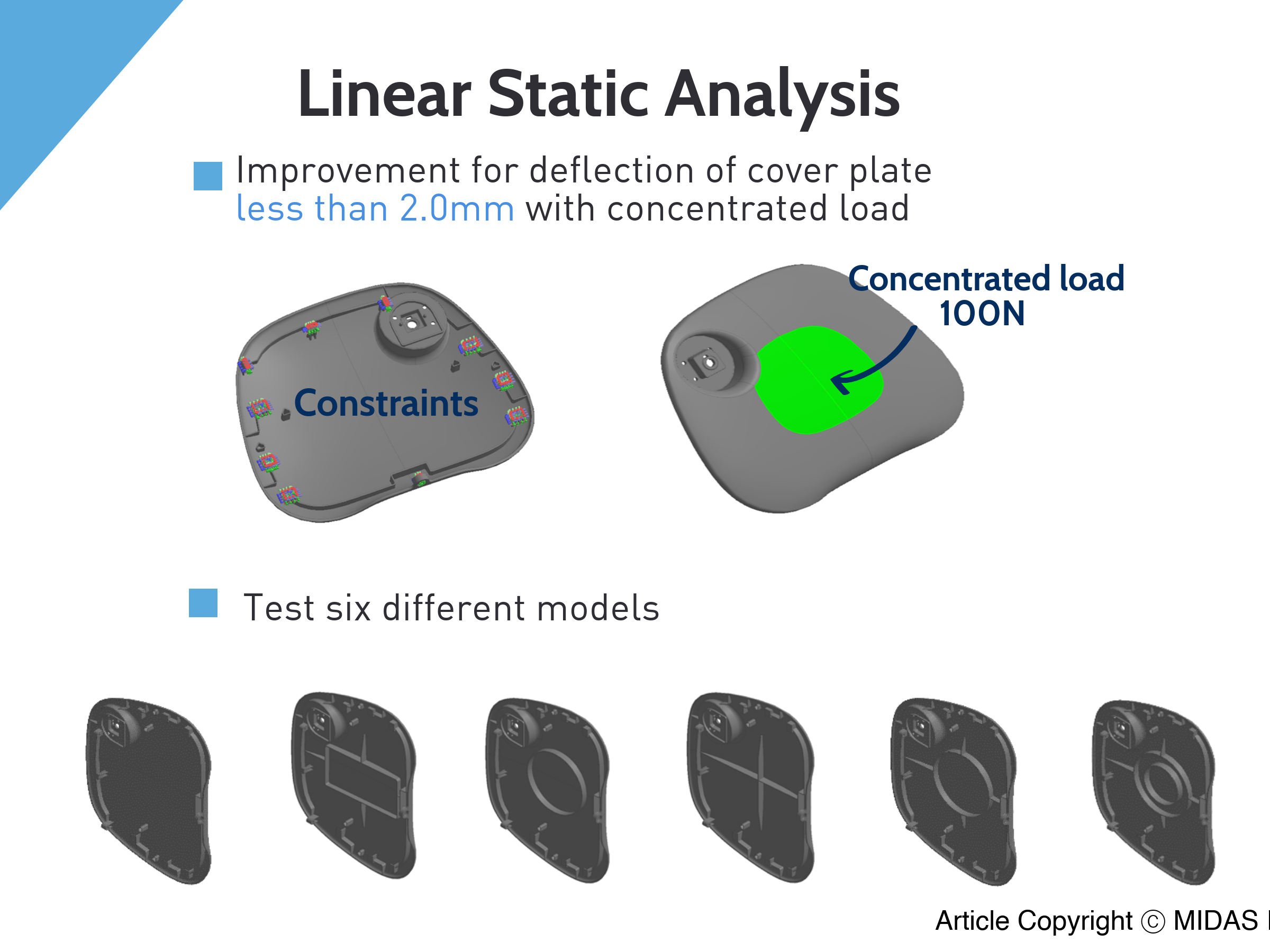

The engineers performed linear static analysis to reduce deformation of cover plate of boiler.

Although the engineers had no simulation experience before, they were available to check deformation

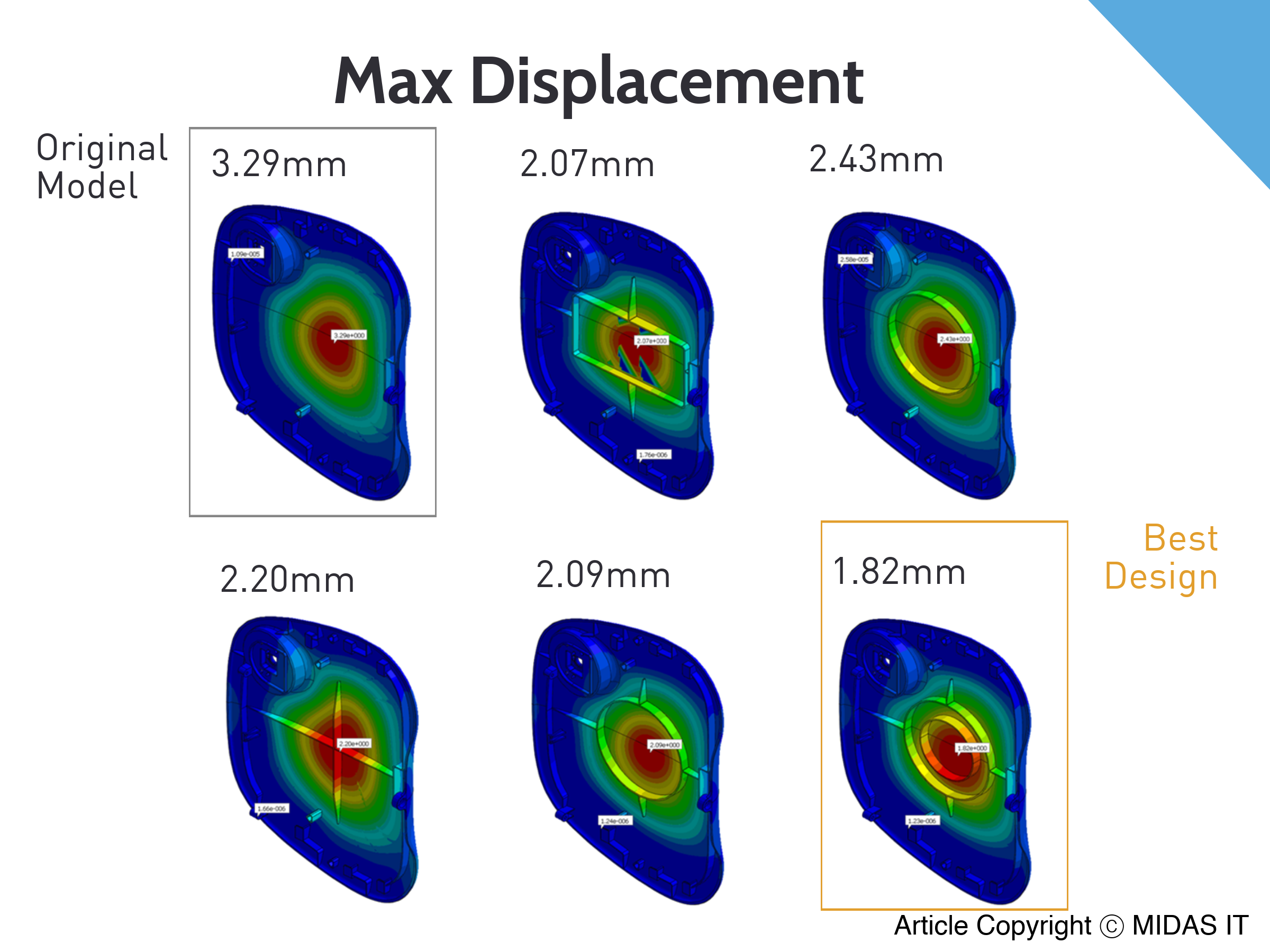

of cover plate of boiler and find the best design draft with midas MeshFree.



001-5



002-5



003-5



004-5



005-5








 speaker-icon1

Speaker :  Hannah Hwang

Category : Mechanical

Software : midas MeshFree

Date : 2018-11-11
