Steel Truss Replacement - Bahia Honda in Florida

Load Rating , Project Application , Complex , Rehabilitation , Truss .
20181112_115813

A super quick read.

Author: Juan Ortega-Rosales

Publish Date: 12 Nov, 2018












Pier and Abutment Inspection


• Performed by UESI in November 2016


• Team of divers inspected the piers and abutment
– Above and underwater

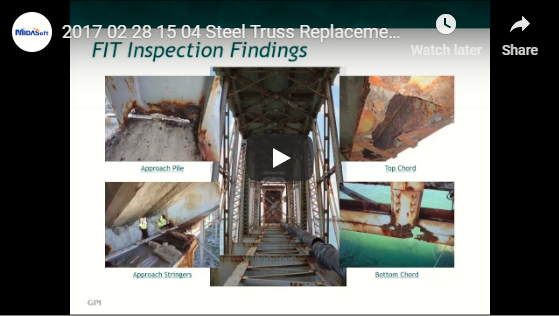

UESI Inspection Findings


• Pier and Abutment Concrete
– Cracking wide enough for chloride infiltration but no corrosion bleed-out
– Corrosion from protruding formwork support rods
– Isolated areas of poor consolidation



• Foundations
– Undermining due to scour





Preliminary Analysis and Alternatives


• Preliminary Structural Analysis
– Reviewed structure with reduced section properties
– Existing Structure unsafe for pedestrian loads


• Alternatives
– No build
– Field rehabilitation
– Disassembly and shop rehabilitation
– Replacement
