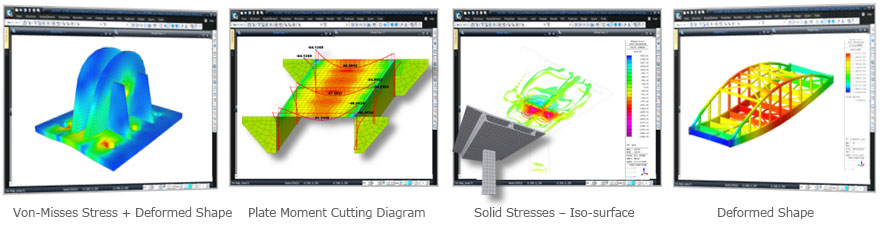

Powerful Post-Processor



Graphic Results

Overview

The post-processor can automatically create load combinations in accordance

with specified design standards. Users can conveniently specify additional load

combinations or modify existing combinations. Beam diagrams forces in and moments

about both strong and weak axes simultaneously. By adjusting the type of display,

we can obtain the results of reactions, displacements, forces and stresses graphically.



 593d4bf5-0dfa-432c-b231-d542c9ae9ae4

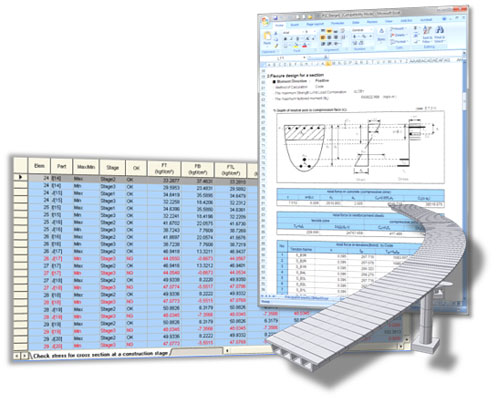

Table Results

Overview

midas Civil also provides results that are compatible with MS Excel, which enables the user to review all analysis and design results systematically.
Results are produced by using intuitive wizard type dialog boxes. Different load combinations can be specified to different results such as reactions, displacements, member forces, etc. Moreover, midas Civil provides powerful selection, filter and envelope functions for the user to customize the result output.



  8d5668bc-d9f9-4a9a-9c36-33fa6e8b44ee

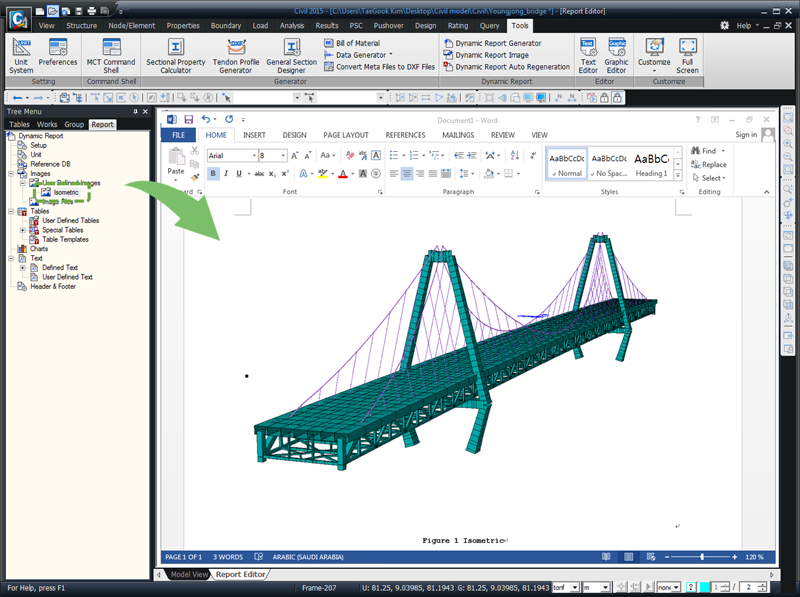

Report Generation

Overview

midas Civil’s state of the art report generation includes features  such as graphical generation

which allows you to define the function with respect to either time or distance.

The intuitive drag and drop feature allows you to conveniently copy images and result tables

directly from the program to your MS Word report. All of the data entered in the report can be

modified and saved by the user in MS Word format without any limitations.

Also, all result tables can be seamlessly exported to Excel.
